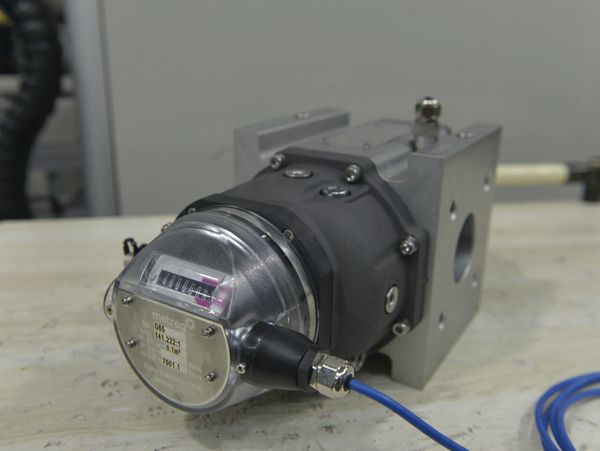

Rotary Gas Meter
The MRM rotary displacement gas meter is a high precision instrument for gas volume measurement and flow measurement of natural gas and other non-aggressive gases in gas stations and plants. The MRM rotary gas meter is applicable in commercial and industrial plants.
- Make: Metreg Technologies GmbH
- Model: MRM
- Meter sizes: G10 to G1000
- Flow rates: 0.4 to 1600 m3/h
- Nominal sizes: DN25 to DN200 (1" to 8")
- Pressure class: PN10/16 and ANSI150*
- Installation: Horizontal and Vertical mounting position

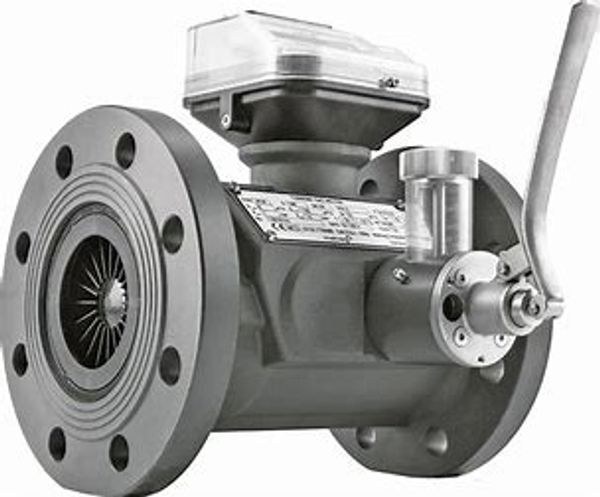

Turbine Gas Meter
The MTM turbine gas meter is fit for use in the custody transfer measurement of gas volumes - especially natural gas in gas transmission stations, in power plants and city stations as well as in various industrial plants wherever custody transfer equivalent accuracy of measurement is requested.
- Make: Metreg Technologies GmbH
- Model: MTM
- Meter size: G65 to G4000
- Flowrates: 5 to 6500 m3/h
- Nominal sizes: DN50 to DN300 (2" to 12")
- Pressure class: PN16 to PN100 and ANSI150, 300 and 600
- Installation: Horizontal and Vertical mounting possible

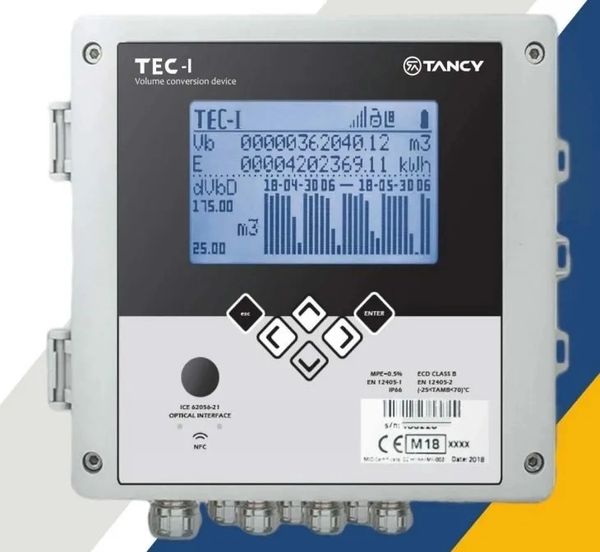

Electronic Volume Corrector
TEC-I EVC is designed to calculate gas volumes under base conditions, based on a volume at metering conditions, a temperature, a pressure and a compressibility factor. Its volume input is a low frequency one that can be connected to any Ex compliant gas meter that provides such information.
- Make: Tancy Instrument Group Co. Ltd.
- Model: TEC-I
- Pressure Sensor Range: 0.9 to 10 barA
- Temperature Sensor Range: -25 to +70 Deg.C
