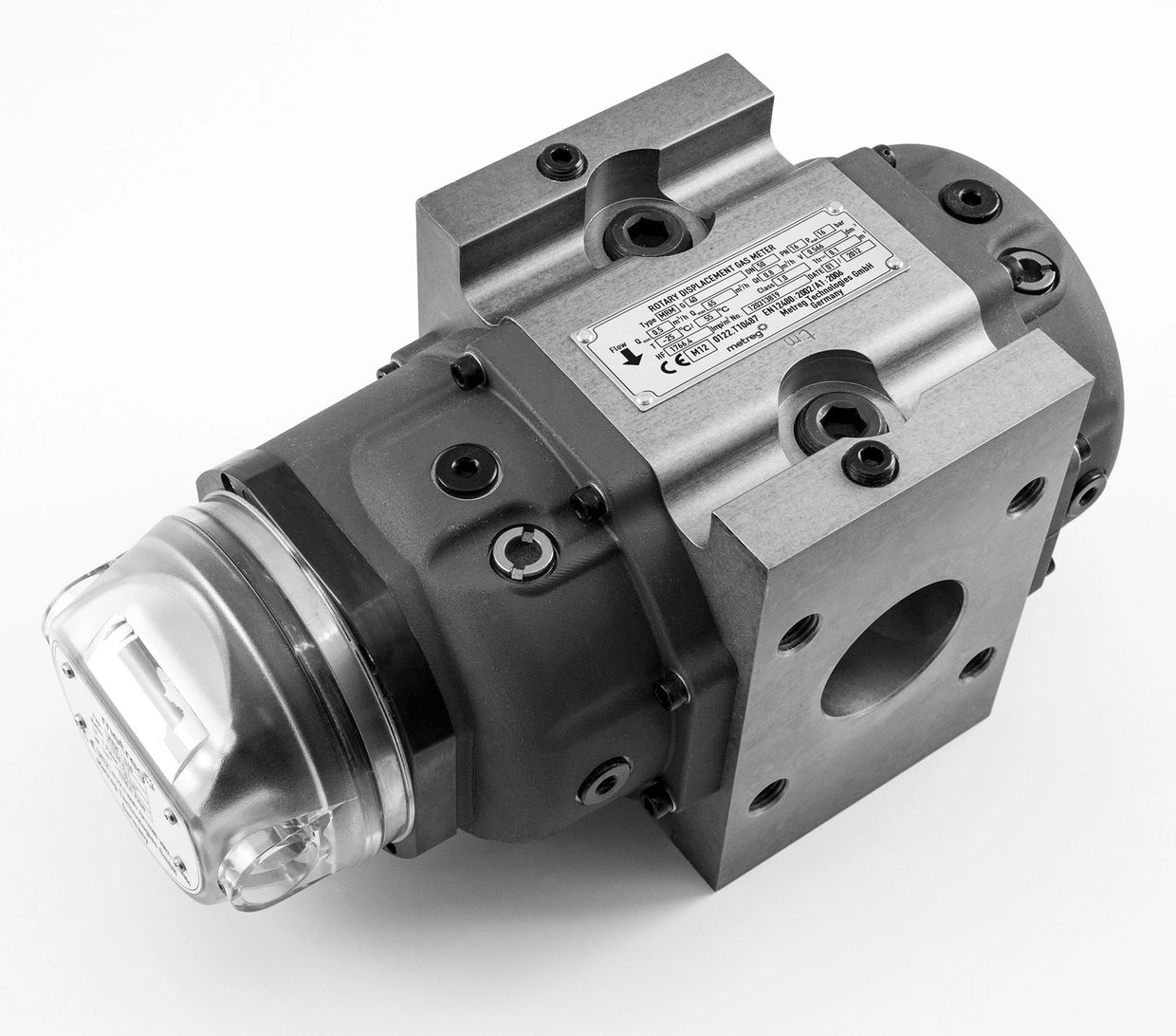

RPD Gas Meter
RPD Gas Meter
The MRM rpd gas meter is a high precision instrument for gas volume measurement and flow measurement of natural gas and other non-aggressive gases in gas stations and plants. The MRM rpd gas meter is applicable in commercial and industrial plants.
- Make: Metreg Technologies GmbH
- Model: MRM
- Meter sizes: G10 to G1000
- Flow rates: 0.5 to 1600 m3/h
- Nominal sizes: DN25 to DN200 (1" to 8")
- Pressure class: PN10/16 and ANSI150*
- Measuring range standard 1:50, Optional up to 1:200
- Meter housing made of anodized high strength Aluminum
- Index head by default made of synthetic material
- Rotating Index counter (355 Degree)
- No inlet and outlet section required
- Installation: Horizontal and Vertical mounting position
- Approvals according to MID (2004/22/EC), OIML, PED (97/23/EC), ATEX
